Widely used in glass melting furnaces magnesia chrome brick
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Product Introduction:

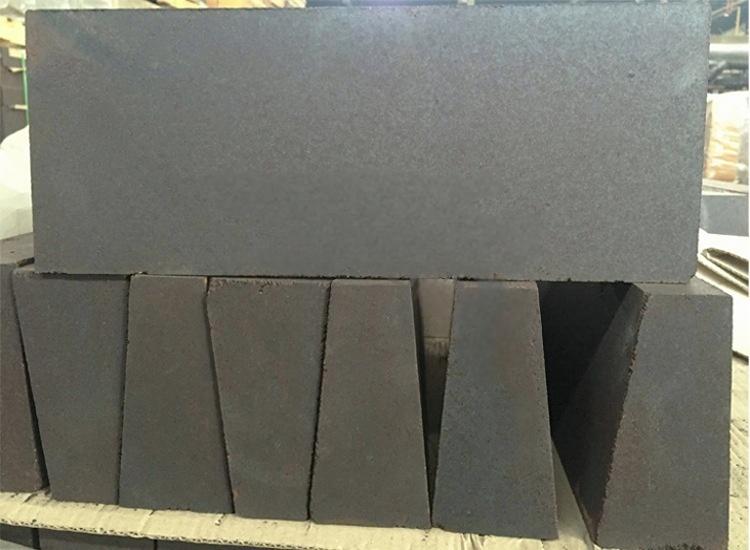

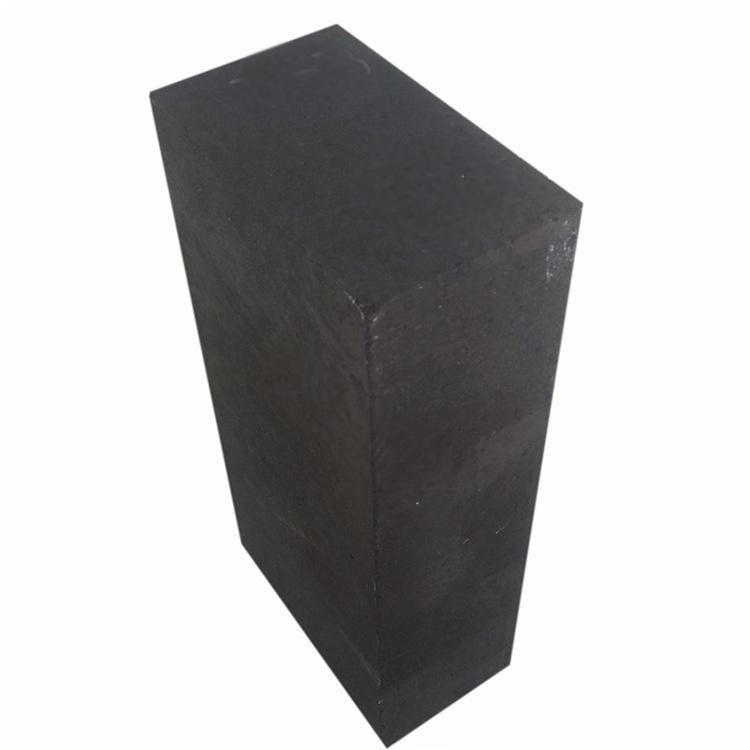

Direct bonded magnesia chrome brick is a product made from high-purity or sub high-purity sintered or fused magnesia and chromium concentrates as raw materials. High purity sintered magnesia and chromite with SiO2 less than 2% are used as raw materials and produced through high-temperature sintering. This product has few impurities and is fired at high and ultra-high temperatures. The glass phase is concentrated in the triangular region of the crystal phase, and the crystal phases are directly combined.
Product performance:
It has the characteristics of high temperature structural strength, high load softening temperature, and strong resistance to chemical erosion.
Main purpose:
Widely used in cement rotary kiln firing belts, glass melting furnaces, steelmaking electric furnaces, converters, and non-ferrous metal smelting furnaces.
Direct bonded magnesia chrome brick:
Brand | Chemical Analysis(%) | Physical Properties(≥)
| ||||||||
MgO ≥ | Gr202 ≥ | SiO2 ≤ | Al203 ≤ | Fe203 ≤ | CaO ≤ | Cold Crushing Strength (Mpa) | Apparent Porosity (%)
| Bulk Density (g/cm3) | Refractornessunder load ℃ | |
ZHMGe-14 | 70 | 14 | 1.5 | 5.0 | 8.0 | 1.2 | 55 | 17 | 3.15 | 1700 |
ZHMGe-12 | 72 | 12 | 2.0 | 4.5 | 7.5 | 1.5 | 55 | 17 | 3.10 | 1700 |
ZHMGe-10 | 75 | 10 | 2.0 | 4.5 | 6.5 | 1.5 | 50 | 18 | 3.10 | 1650 |
MGe-8 | 75 | 8 | 2.5 | 4.0 | 5.5 | 1.8 | 45 | 18 | 3.05 | 1650 |
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Professional quality testing.
① Chemical analysis.②Physical properties.
2. Appearance check.
①Dimension Tolerance. ②Distortion. ③Crack. ④Edge angle defect.⑤Melted hole.⑥Color .
Packaging & shipping:
Packaging:

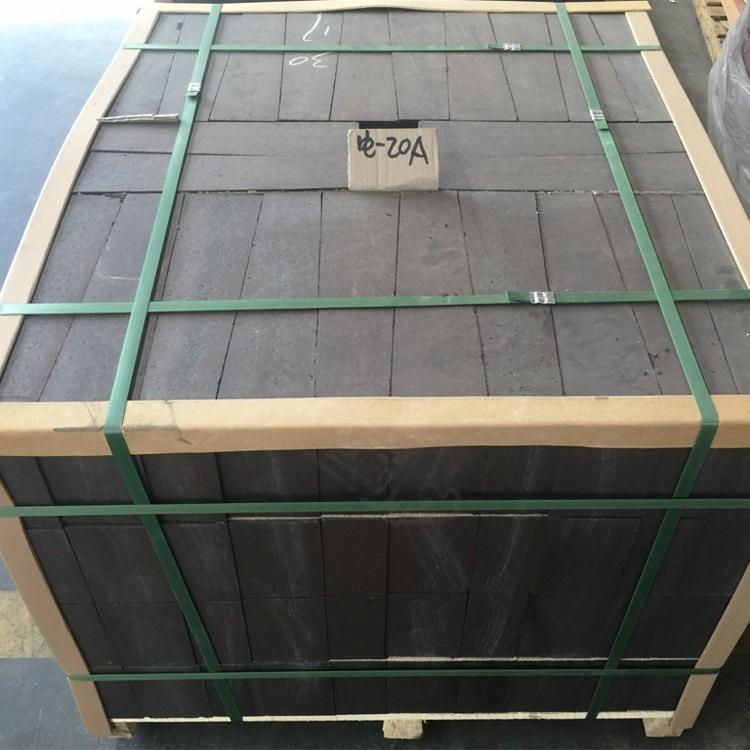

1. magnesia chrome brick will be packed by pallet with PET strap fixed , covering by plastic films.
2. The size of standard export pallet is 1000*1000mm.
Load weight of each pallet:1.5-2.0 Tons.
Shipping:
20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
Company Description:
ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products:magnesia chrome brick, Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
