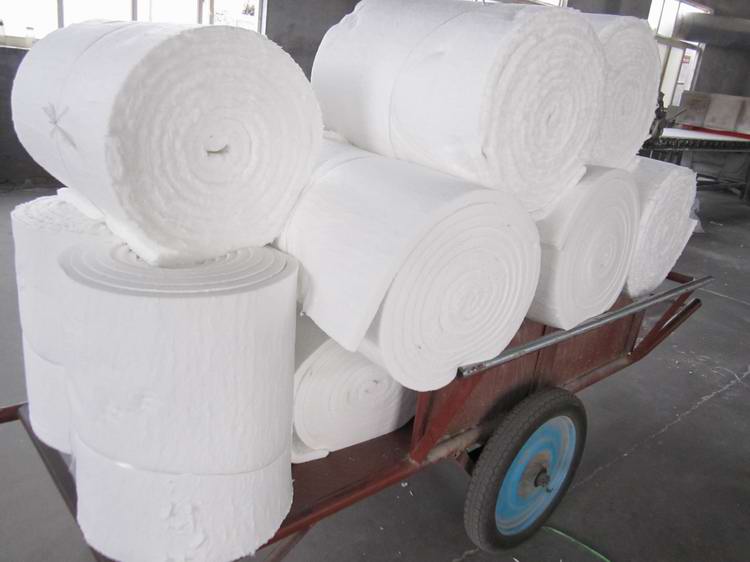

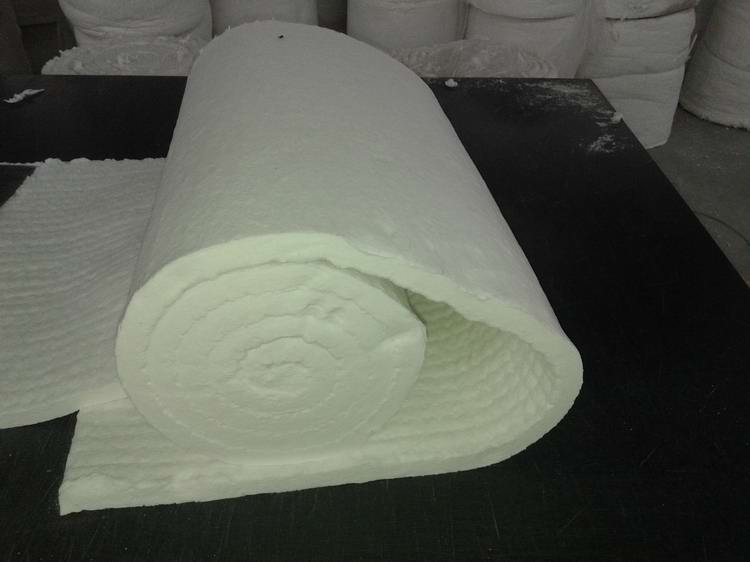

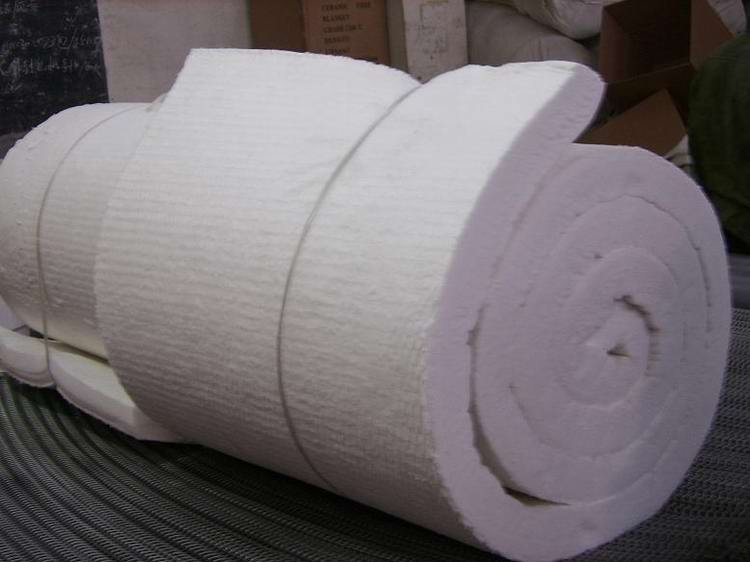

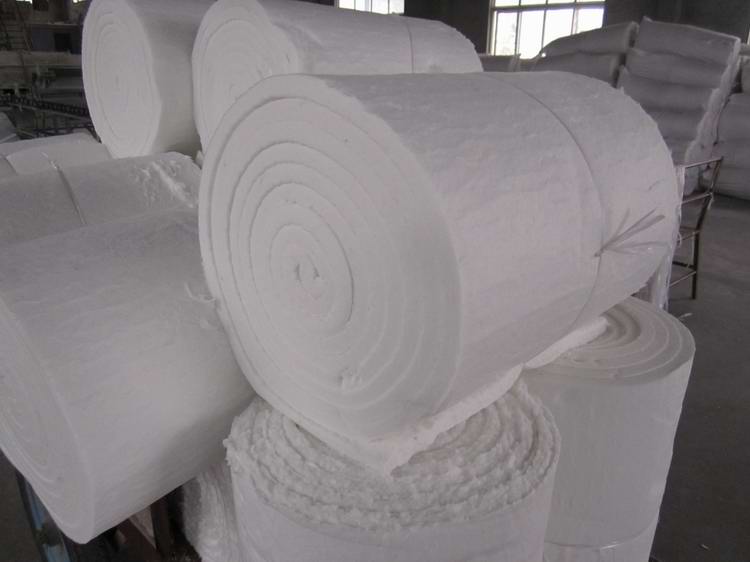

Roof insulation for high temperature industrial furnace ceramic fiber felt
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Ceramic fiber, also known as aluminium silicate fiber, are a new type of lightweight refractory material. The material has the advantages of light bulk density, high temperature resistance, good thermal stability, low heat conductivity, small heat capacity, small thermal expansion and good thermal insulation. After special processing, it can be made into Ceramic fiber module, ceramic fiber board, ceramic fiber felt, ceramic fiber rope ,ceramic fiber blanket, ceramic fibre paper and other products.
Characteristic:
1. Low thermal conductivity , Low thermal capacity.
2. Excellent insulation property.
3. High temperature stability , Resistance to thermal shock.
4. High strength and Easy to machine ,cut and install.
5. Accurate sizes and good flatness
6. Excellent sound absorption, Fire protection and chemical corrosion resistance.
7. High temperature filtration etc.
Teachnical Data:
Item/Type | ZYC-COM | ZYC-STD | ZYC-HP | ZYC-HA | ZYC-HZ | |
Classification temp oC | 1100 | 1260 | 1260 | 1360 | 1430 | |
Working temp oC | < 1000 | 1050 | 1100 | 1200 | 1350 | |
Color | white | Pure white | Pure white | Pure white | Pure white | |
Bulk density (kg/m3) | 180 250 | 180 | 180 | 180 | 180 | |
Permanent linear shrinkage(%) (After 24 hours,density 320kg/m3) | 4 | 3 | 3 | 3 | -3 | |
Thermal conductivity (w/m.k) (density 285kg/m3) | 0.085(400) 0.132(800) 0.18(1000) | 0.085(400) 0.132(800) 0.18(1000) | 0.085(400) 0.132(800) 0.18(1000) | 0.085(400) 0.132(800) 0.18(1000) | 0.085(400) 0.132(800) 0.18(1000) | |
Tensile strength (MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Chemical composition (%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
AL2O3+SiO2 | 96 | 97 | 99 | 99 | ||
AL2O3+ SiO2+ ZrO2 | - | - | - | 99 | ||
ZrO2 | - | - | - | 15-17 | ||
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
Size(mm) | 600×400,900×600,1000×1000,1200×600,1200×1000 or according to buyers requirement | |||||
Thickness(mm) | 10-100 | |||||
Applications:
◎ Lining and Fireproof board for high temperature industrial kilns and furnaces.
◎ Roof insulation for high temperature industrial furnace .
◎ High temperature gasket .
◎ High-temperature pipe wall lining .
◎ Insulation material for Metallurgy, machinery , chemical, optical, and environmental protection industries.
Packaging & shipping:

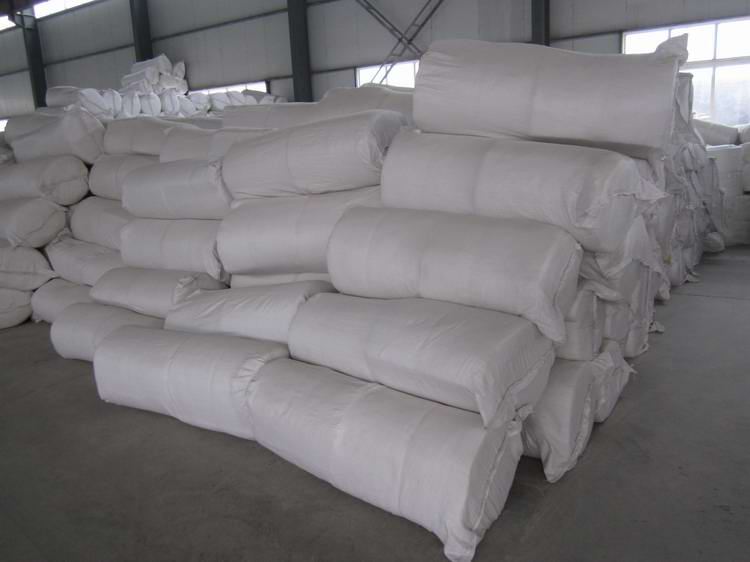

Packaging:

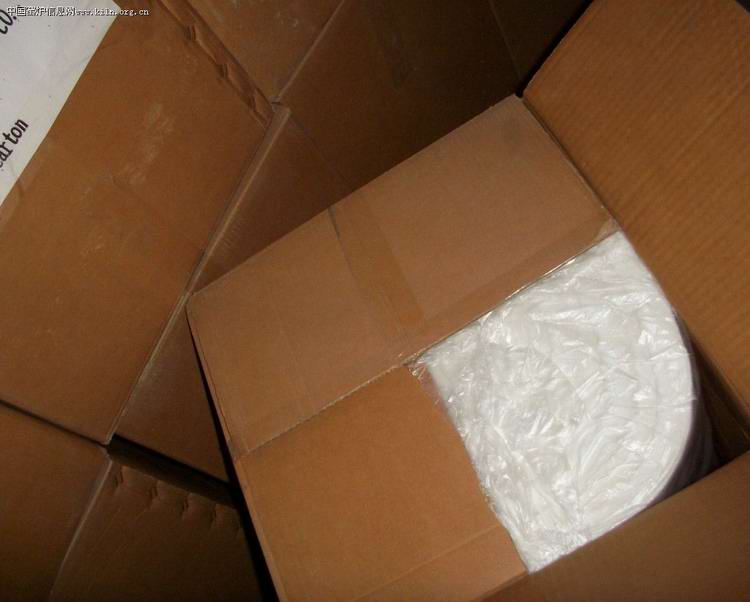

1.Plastic bag 2.Carton
Shipping:
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
