Power industry Ceramic fiber blanket
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Ceramic fiber, also known as aluminium silicate fiber, are a new type of lightweight refractory material. The material has the advantages of light bulk density, high temperature resistance, good thermal stability, low heat conductivity, small heat capacity, small thermal expansion and good thermal insulation. After special processing, it can be made into Ceramic fiber module, ceramic fiber board, ceramic fiber felt, ceramic fiber rope ,ceramic fiber blanket, ceramic fibre paper and other products.
Characteristic:
1. Low thermal conductivity , Low thermal capacity.
2. Low slag ball content.
3. High temperature stability , Resistance to thermal shock.
4. Excellent tensile strength.
5. Excellent chemical stability.
6. Excellent sound absorption, Fire protection and chemical corrosion resistance.
Teachnical Data:
Item/Type | ZYC-COM | ZYC-STD | ZYC-HP | ZYC-HA | ZYC-AZ | ZYC-HZ | |
Classification Temp(℃) | 1100 | 1260 | 1260 | 1360 | 1360 | 1430 | |
Working Temp (℃) | <1000 | 1050 | 1100 | 1200 | 1200 | 1350 | |
Color | white | Pure white | Pure white | Pure white | pure white | Pure | |
Density (kg/m3) | 96 | 96 | 96 | 96 | 128 | 128 | |
128 | 128 | 128 | 128 | 160 | 160 | ||
Permanent linear shrinkage(%)(after24 hours,128kg/m3) | -4 | -3 | -3 | -3 | -3 | -3 | |
(1000oC) | (1000oC) | (1100oC) | (1250oC) | (1280oC) | (1350oC) | ||
Thermal conductivity (w/m.k),128kg/m3) | 0.09(400oC) | 0.09(400oC) | 0.09(400oC) | 0.12(600oC) | 0.132(600oC) | 0.16(800oC) | |
0.16(800oC) | 0.16(800oC) | 0.16(800oC) | 0.20(1000oC) | 0.22(1000oC) | 0.20(1000oC | ||
Tensile strength (Mpa)(128kg/m3) | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | |
Chemical Composition (%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 45-46 | 39-40 |
AL2O3+SiO2 | 96 | 97 | 99 | 99 | - | 81 | |
ZrO2 | - | - | - | - | 5-7 | 15-17 | |
Fe2O3 | 1.2 | 0.6 | 0.2 | 0.2 | 0.2 | 0.2 | |
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | 0.2 | |
CaO+MgO | 0.2 | 0.2 | 0.2 | 0.2 | - | 0.2 | |
Size (mm) | 14640/7200/3600x610x10-50 or according to buyers requirement | ||||||
Application:
Ceramic fiber products are mainly serve as the insulation lining for industrial furnaces, heating equipment and high- temperature pipelines,such as
Metallurgy Industry: heating furnaces,heat treatment furnaces and ladle insulated cover.
Power industry: thermal insulation material for electric power boilers, gas turbine engine and nuclear power plant.
Petrochemical industry: the lining of high-temperature reaction equipment and heating equipment in chemical fields,like converting furnaces, constant/reduced pressure furnaces, cracking furnaces, flue lining.
Industrial furnace: roller kilns,tunnel kilns ,shuttle kilns and other kinds of furnaces.
Packaging & shipping:

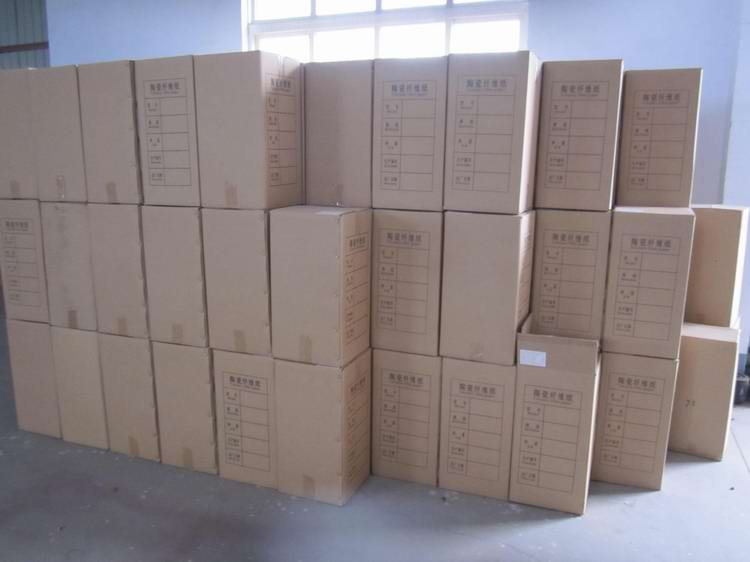

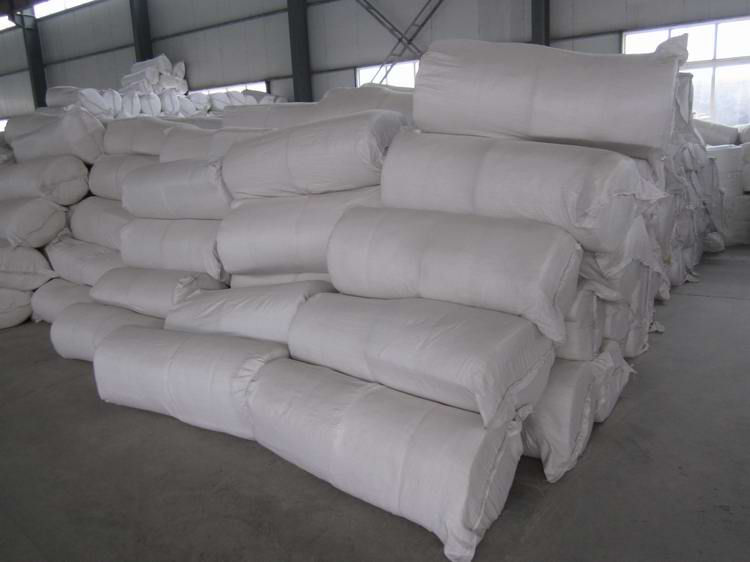

Packaging:
1.Plastic bag 2.Carton
Shipping:
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
