Petrochemical industry Ceramic fiber module
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Ceramic fiber, also known as aluminium silicate fiber, are a new type of lightweight refractory material. The material has the advantages of light bulk density, high temperature resistance, good thermal stability, low heat conductivity, small heat capacity, small thermal expansion and good thermal insulation. After special processing, it can be made into Ceramic fiber module, ceramic fiber board, ceramic fiber felt, ceramic fiber rope ,ceramic fiber blanket, ceramic fibre paper and other products.

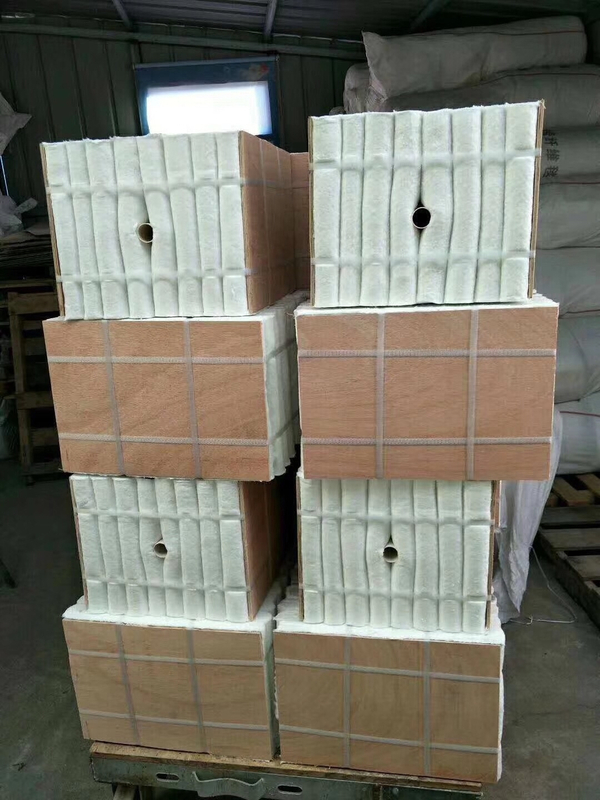

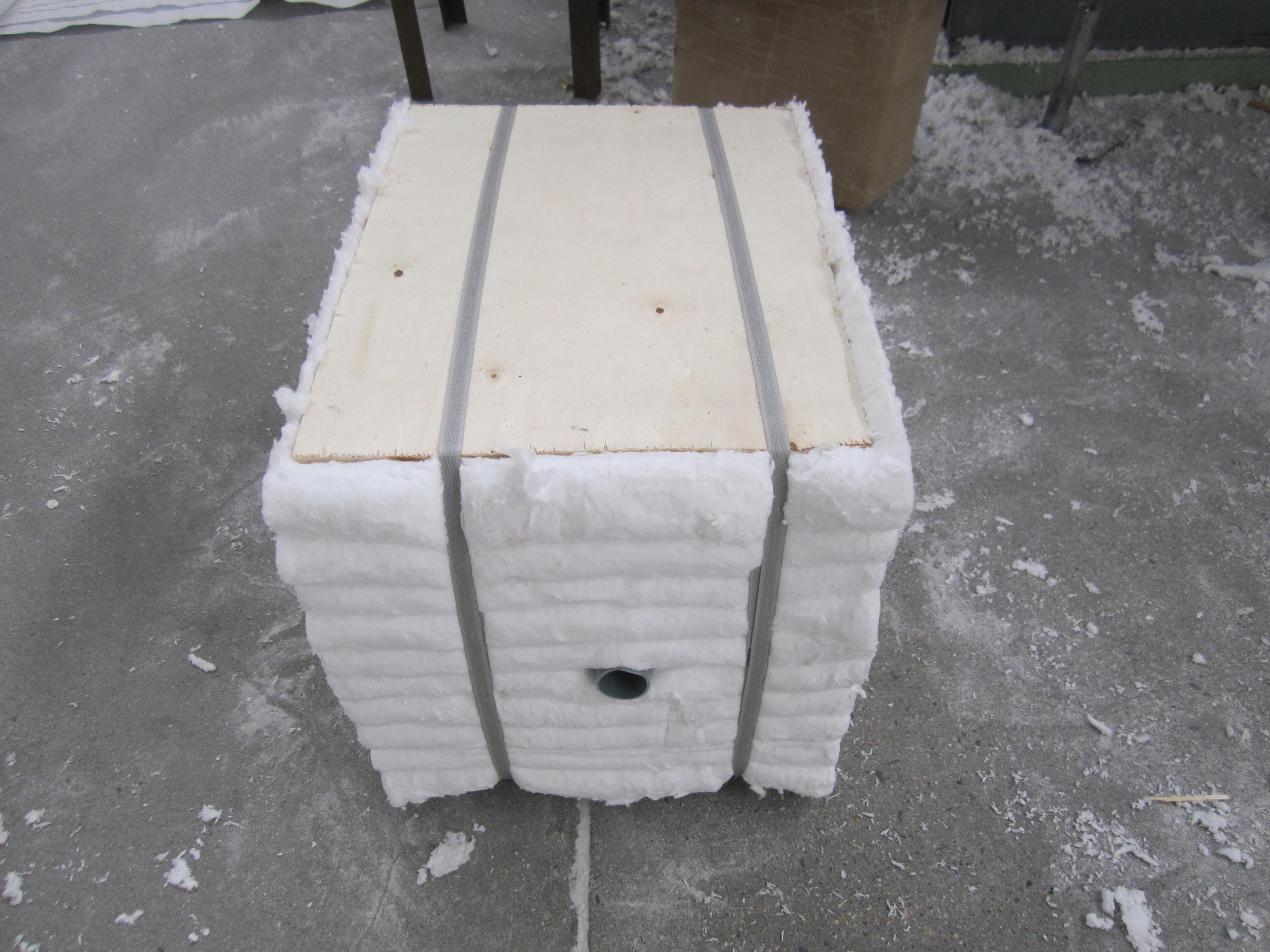

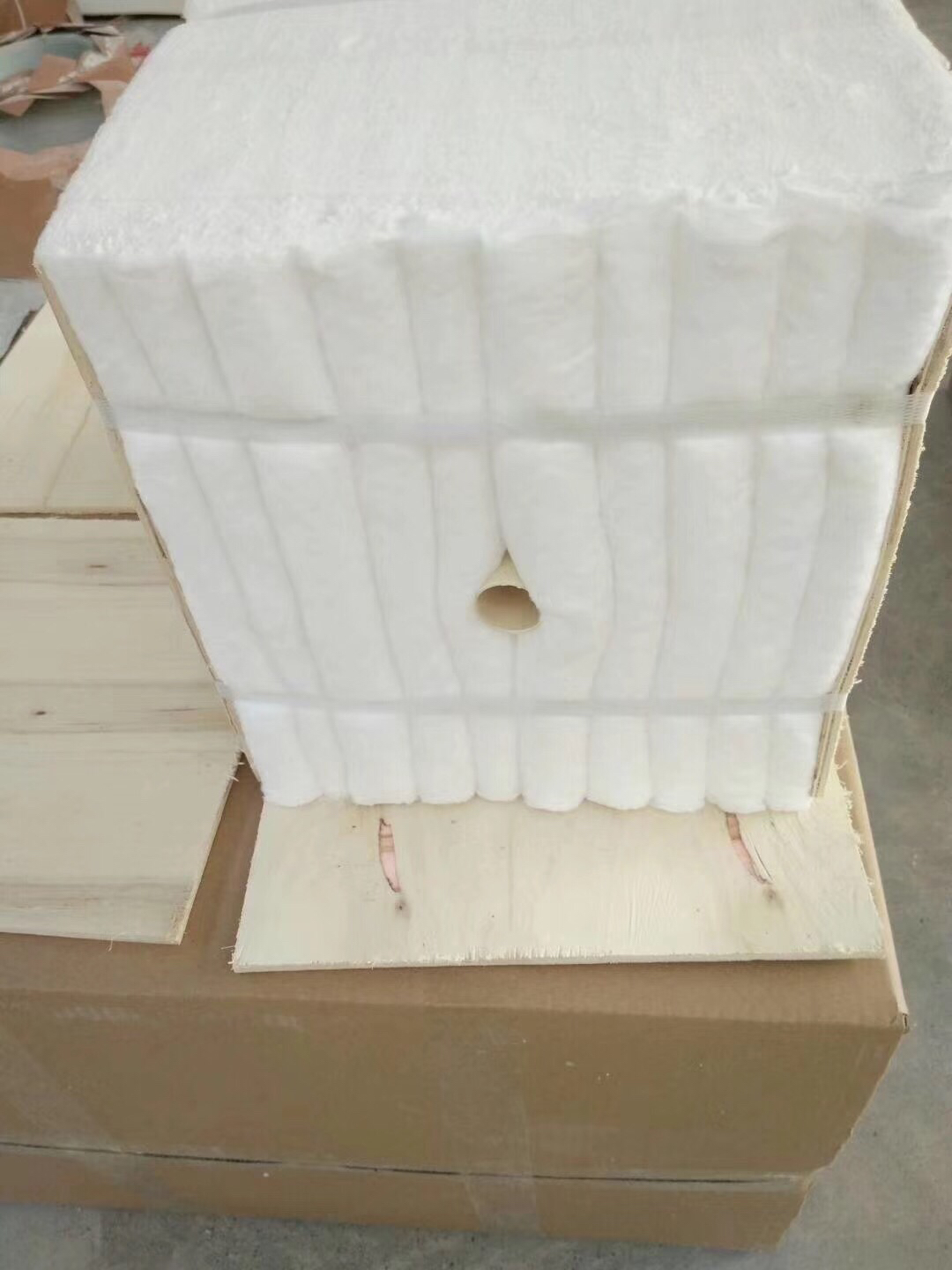

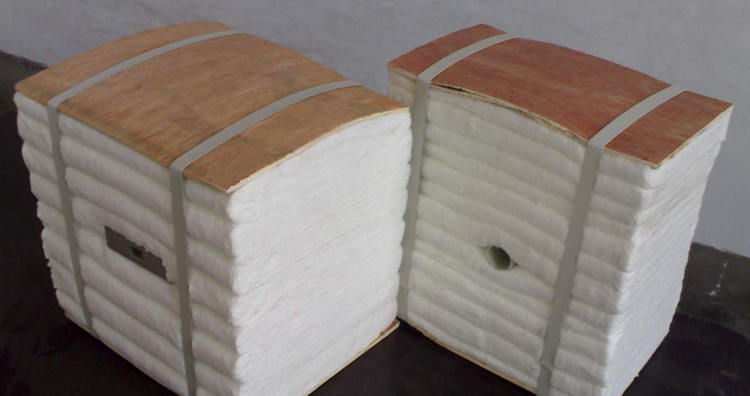

Ceramic fiber module is a new refractory lining product in order to simplify and speed up the lining.
Ceramic fiber module can be fixed on the anchor bolt of industrial furnace steel sheet, with a good fireproof and thermal insulation.
Characteristic:
1. Low thermal conductivity , Low thermal capacity.
2. Excellent insulation property.
3. High temperature stability , Resistance to thermal shock.
4. Resistance to heat shock.
5. Excellent mechanical strength.
6. Fast and easy installation.
Teachnical Data:
Item/Type | ZYC-COM | ZYC-STD | ZYC-HP | ZYC-HA | ZYC-HZ | |
Classification temperature () | 1260 | 1260 | 1300 | 1400 | 1430 | |
Operating temperature() | 1000 | 1000 | 1150 | 1200 | 1350 | |
Densitykg/m3) | 190-240 | 190-240 | 190-240 | 190-240 | 190-240 | |
The chemistry constitute (%) | AL2O3 | 44-45 | 46 | 47-49 | 52-55 | 39-40 |
AL2O3+SiO2 | 96 | 97 | 99 | 99 | - | |
AL2O3+SiO2+ZrO2 | - | - | - | - | 99 | |
ZrO2 | - | - | - | - | 15-17 | |
Fe2O3 | 1.2 | 1 | 0.2 | 0.2 | 0.2 | |
Na2o+K2O | 0.5 | 0.2 | 0.2 | 0.2 | 0.2 | |
Dimensions (mm) | 610×300×100-200without Anchor;300×300×175-250With Anchor or without Anchor;Other specifications according to the customer request | |||||
Application:
◎Metallurgy Industry: :Ladle cover , furnace , sheet annealing furnace, continuous annealing furnace , rotary furnace , bell furnace , coating furnace, walking beam furnace , hot air and flue pipes and so on.
Mechanism industry: thermal insulation material for electric power boilers, gas turbine engine and nuclear power plant.
◎Petrochemical industry: the lining of high-temperature reaction equipment and heating equipment in chemical fields,like converting furnaces, constant/reduced pressure furnaces, cracking furnaces, flue lining.
◎Ceramics and electroceramics: roller kilns,tunnel kilns ,shuttle kilns and other kinds of furnaces.
Environment Protection Industry:Waste incinerators , RTO exhaust treatment furnace .
Aluminum Industry:Crucible furnace, pit soaking furnace and lid, crucible furnace , flue and so on.
Packaging & shipping:

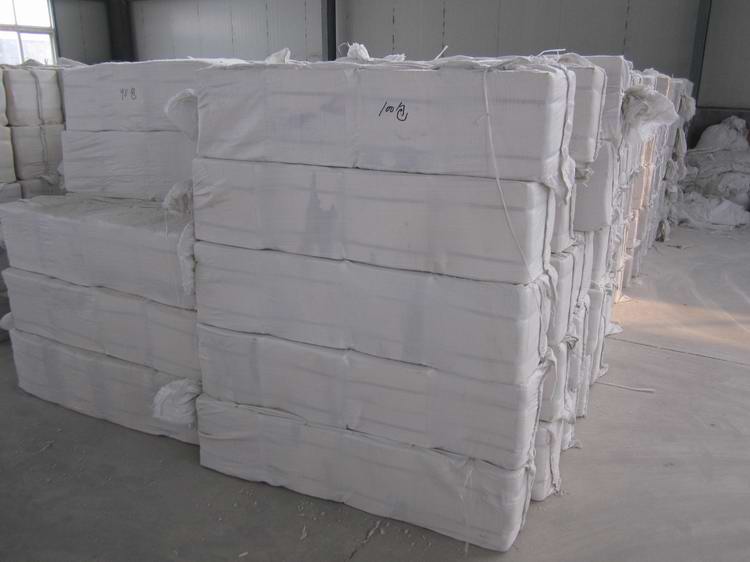

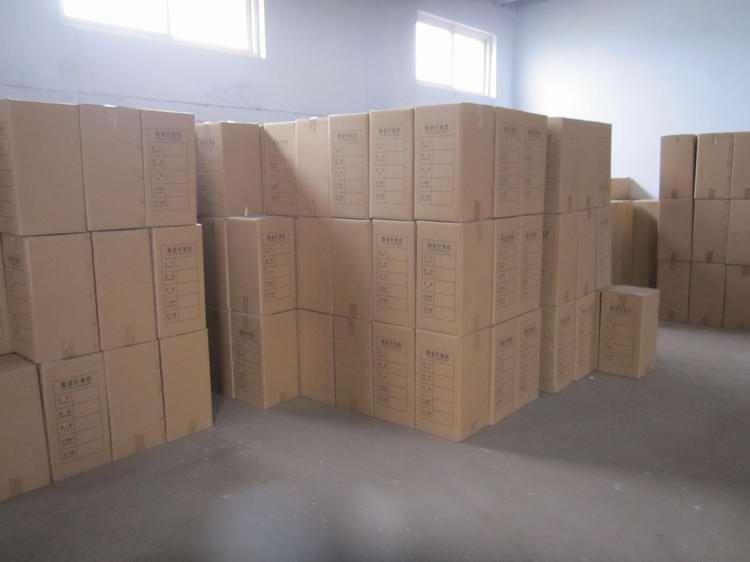

Packaging:
1.Plastic bag 2.Carton
Shipping:
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
