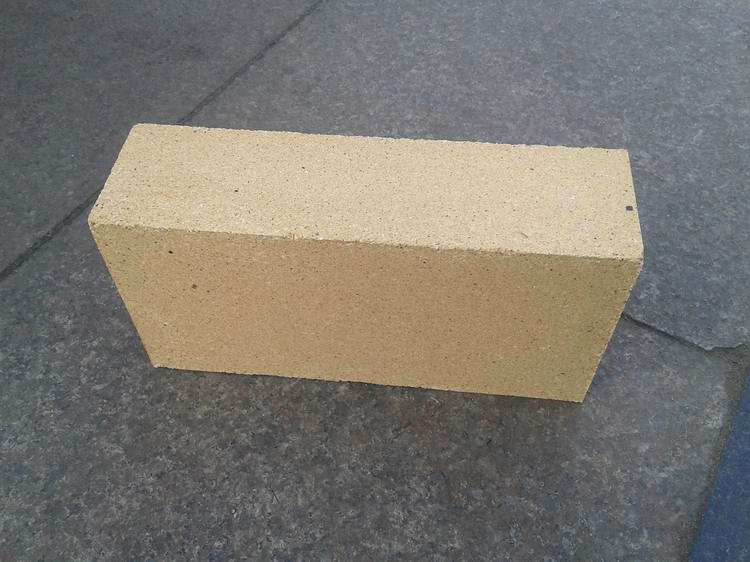

Iron&steel making industry Clay refractory brick
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Fire brick is also called refractory brick, It is shaped refractory product. It is made from chamotte or bauxite and combining clay, Through high pressure molding and sintered at high temperature. The AL2O3 content range from 30% to 90%.The refractoriness range from 1580°C to 1850°C. It has characteristic of high temperature resistance, corrosion resistance, wear resistance and thermal shock resistance.which decide fire brick is the ideal lining material for various kinds of industrial high temperature furnace and other thermal equipment.

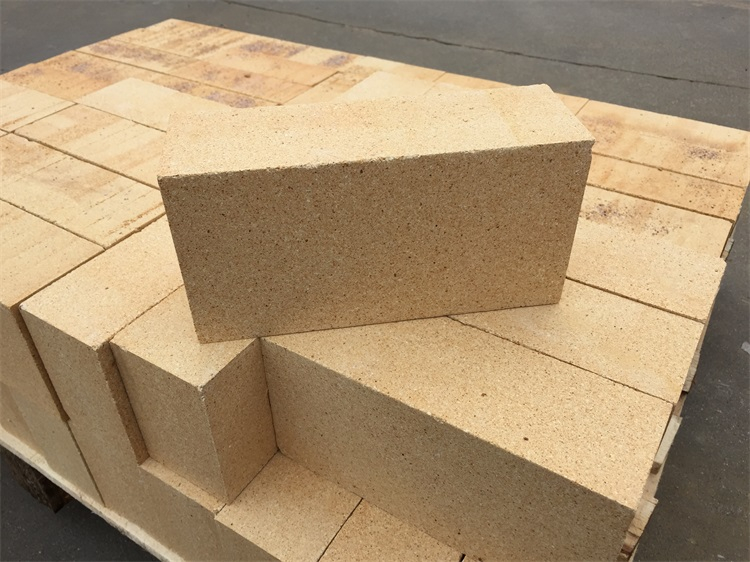

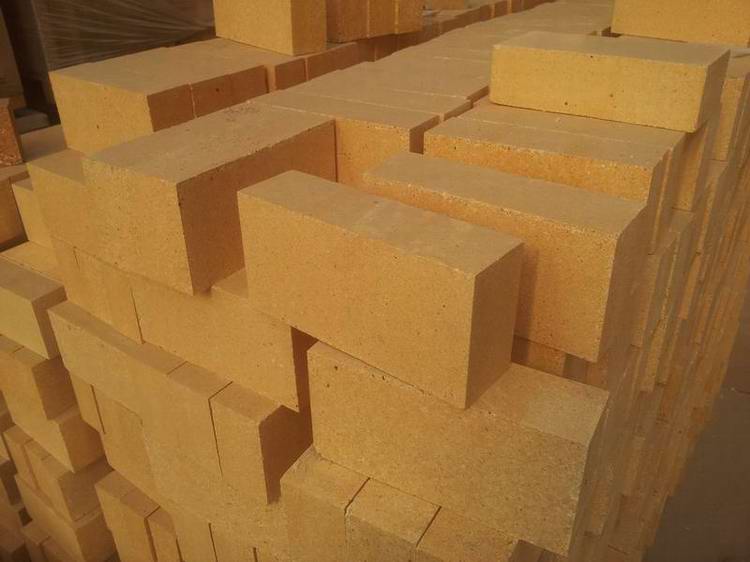

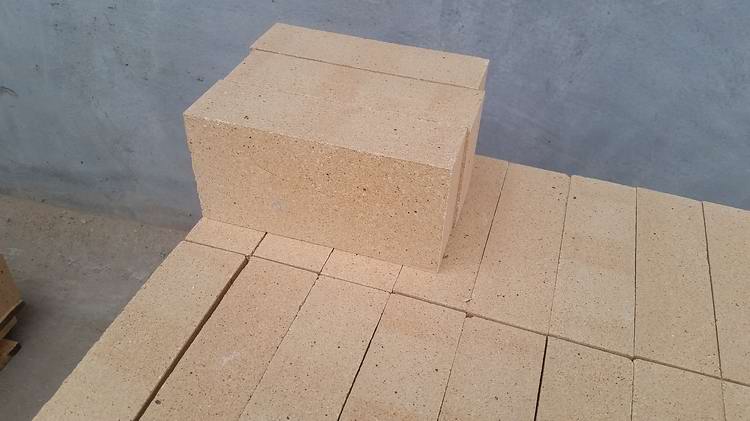

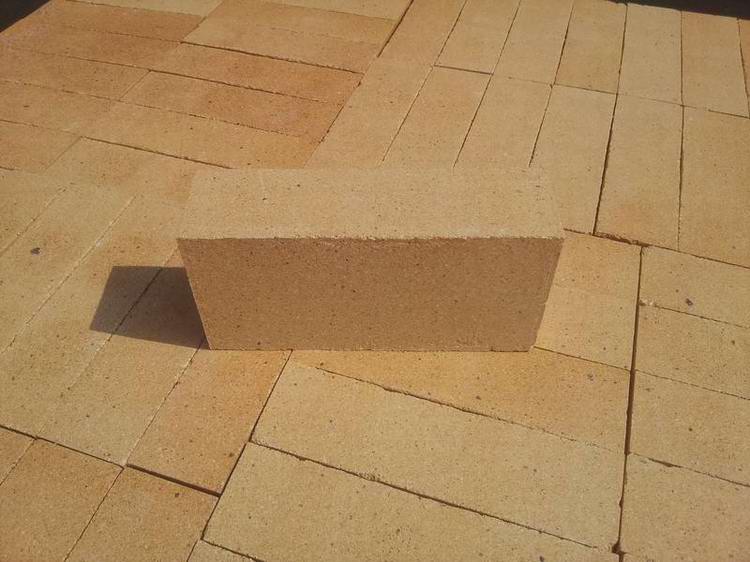

Fire clay brick
Item/Grade | N-1 | N-2a | N-2b | N-3a | N-3b | N-4 | N-5 | N-6 | |
Refractoriness °C (≥) | 1760 | 1740 | 1740 | 1720 | 1720 | 1700 | 1660 | 1580 | |
Refractoriness under load, 0.2MPa, °C (≥) | 1400 | 1350 | 1340 | 1320 | 1310 | 1300 | 1280 | 1200 | |
Permanent linear Change % | 1400°C ,2h | +0.1 -0.4 | +0.1 -0.5 | +0.2 -0.5 | |||||
1350°C ,2h | +0.2 -0.5 | +0.2 -0.5 | +0.2 -0.5 | +0.2 -0.5 | |||||
Apparent porosity % (≤) | 22 | 24 | 26 | 24 | 26 | 24 | 26 | 28 | |
Cold crushing strength Mpa (≥) | 30 | 25 | 20 | 20 | 15 | 20 | 15 | 15 | |
Thermal shock resistance (1100°C water cooling) | The test data is indicated in the quality certificate | ||||||||
Characteristics:
1. High precision of dimensions.
2. Excellent spalling resistance and wear resistance.
3. Excellent corrosion resistance.
4. Excellent thermal shock resistance.
5. Low iron content and impurities.
6. High-temperature creep rate is low.
7. Excellent volume stability at high temperature.
Application | 1. Iron&steel making industry: Blast furnace,Hot blast furnace(stove),Hot metal ladle,Steel ladle,Heating furnace,Cupola furnace, etc . |
2. Non-ferrous Metal industry: Smelting furnace,Refining furnace,Reverberatory furnace,etc. | |
3.Building materials industry: Cement kiln,Glass kiln,Tunnel kiln,Ceramic kiln,Lime kilns,Kiln car,etc. | |
4. Energy & Incineration: Coke oven,General boiler,Circulating fluidized bed boiler,Electric furnace,Waste incinerators,etc. | |
5. Civilian field : Domestic fireplaces, Pizza Oven and outdoor ovens. | |
6. Others: Petrochemical industry furnace. |
More Details:
Commodity | Fire brick, Refractory brick | ||
Quality Standard | KS,JIS,ASTM,ASME,AMS,DIN,etc | ||

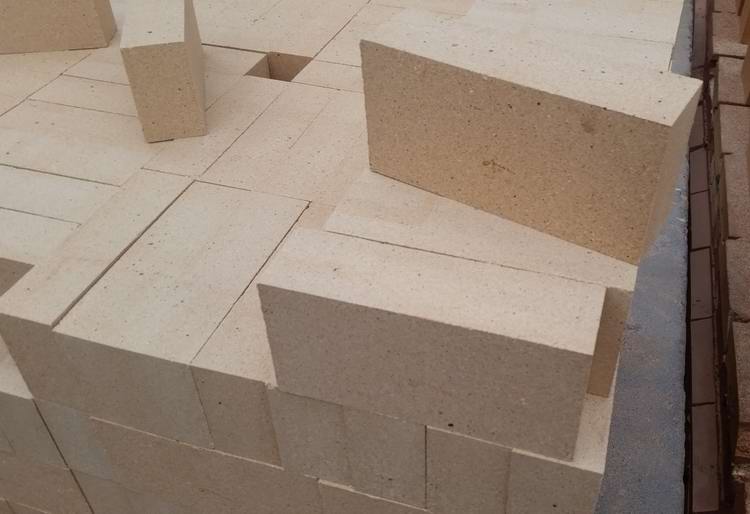

General Size | Straight type | Arch type | Wedge type |
L×W×H (mm) 230×114×65 230×114×75 230×114×32 220×110×60 230×230×65 300×300×65 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 230×114×65/59 230×114×65/50 230×114×75/65 220×110×60/50 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 230×114×65/35 230×114×75/65 230×114×75/55 220×110×60/40 | |
Customization | The size, Chemical analysis,Technical specification can be customized | ||
Packaging | Placed on a pallet and protected by plastic film | ||
Samples | The stock samples are free, Only need to to pay for the freight | ||
Delivery Time | 10-40days after confirming the order | ||
Terms of payment | T/T,L/C, Western Union, MoneyGram , Paypal,etc | ||
Terms of shipment | FOB,CIF,CNF,etc | ||
Port of Loading | Qingdao port, Tianjin port | ||
Certificate File | CO, CE,COA, Test Report,etc | ||
MOQ | 1 pallet | ||
Product Range | Fire clay brick, High alumina firebrick, Insulating brick, Corundum brick, Refractory castable, Insulating castable, Ceramic fiber products, Refractory mortar,etc. | ||
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Professional quality testing.
① Chemical analysis.②Physical properties.
2. Appearance check.
①Dimension Tolerance. ②Distortion. ③Crack. ④Edge angle defect.⑤Melted hole.⑥Color .
Packaging & shipping:
Packaging:

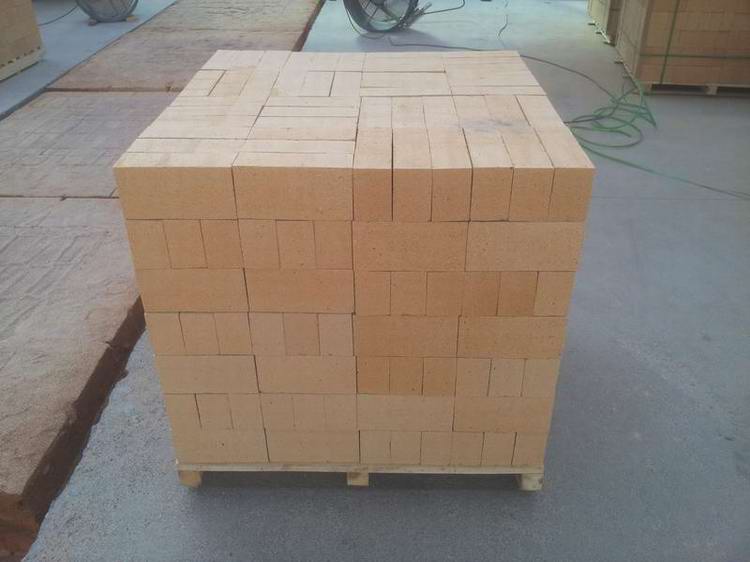

1. Fire bricks will be packed by pallet with PET strap fixed , covering by plastic films.
2. The size of standard export pallet is 1000*1000mm.
Load weight of each pallet:1.0-2.0 Tons.

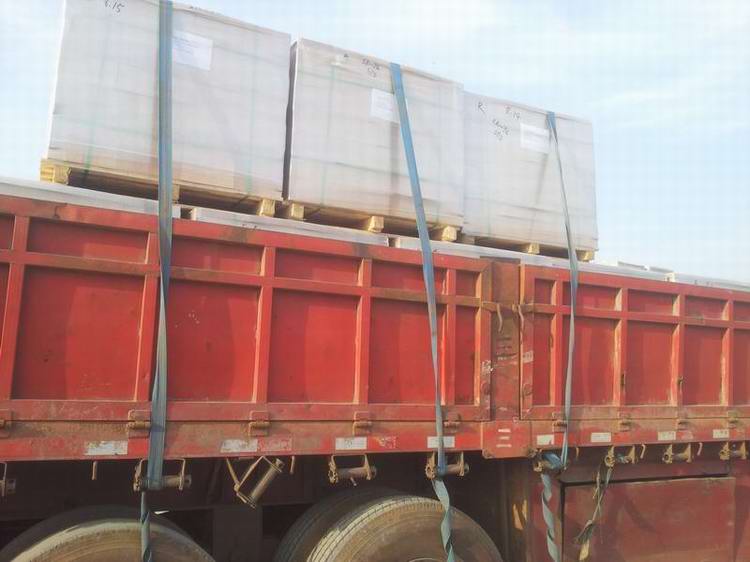

Shipping:

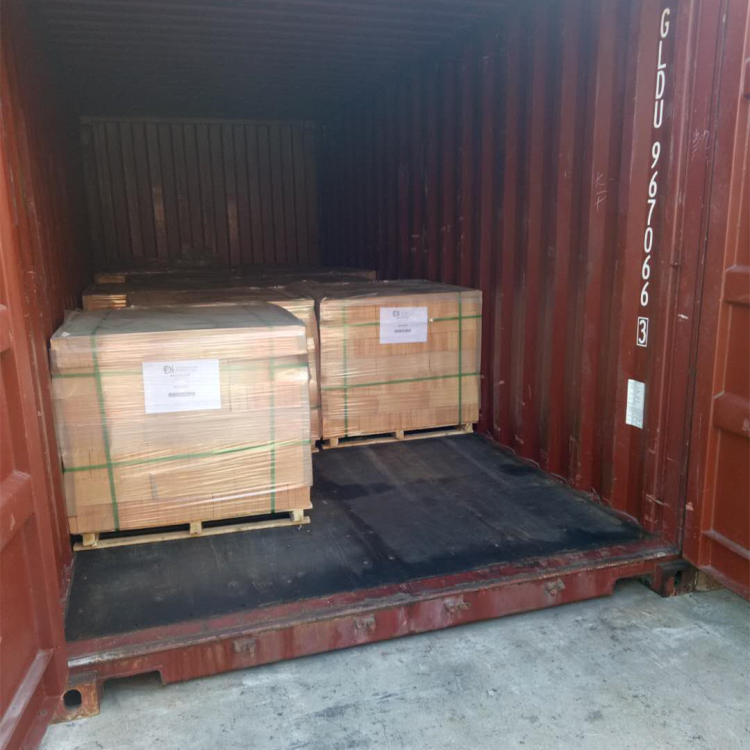

20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. What is the service life of your bricks?
A: The service life of different bricks is unlike.It also depends on your using condition and method.
Q3. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
Company Description:
ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
