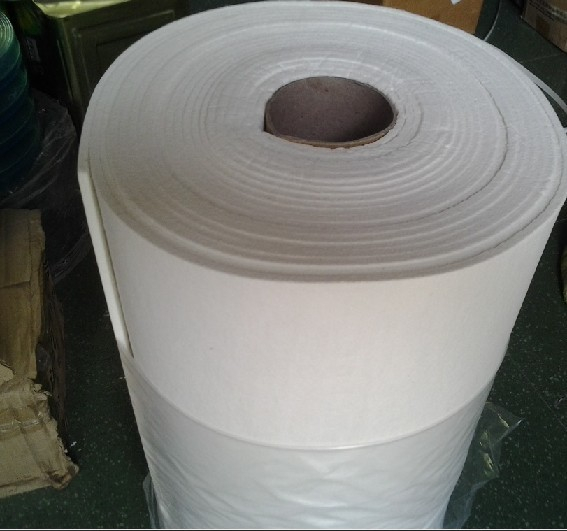

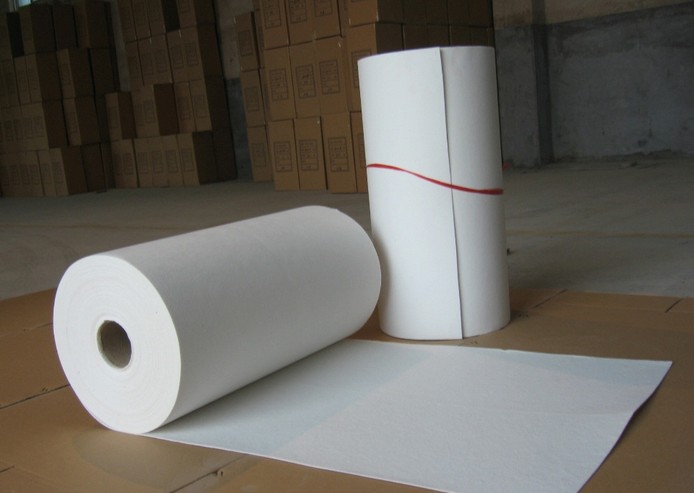

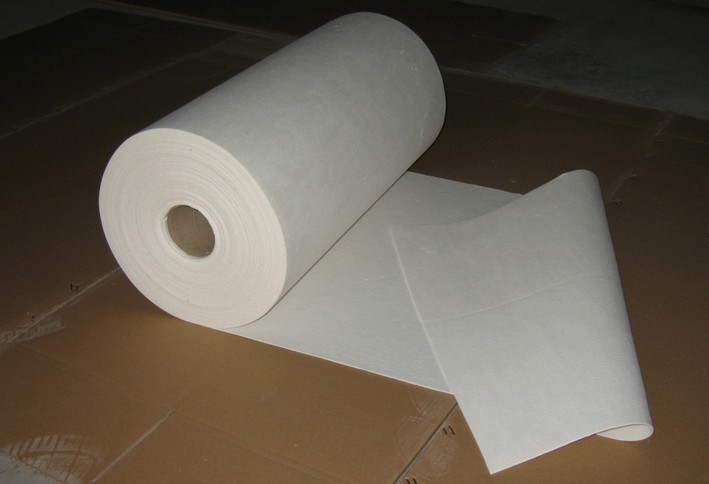

Insulation for electric apparatus Ceramic fiber paper
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Ceramic fiber, also known as aluminium silicate fiber, are a new type of lightweight refractory material. The material has the advantages of light bulk density, high temperature resistance, good thermal stability, low heat conductivity, small heat capacity, small thermal expansion and good thermal insulation. After special processing, it can be made into Ceramic fiber module, ceramic fiber board, ceramic fiber felt, ceramic fiber rope ,ceramic fiber blanket, ceramic fibre paper and other products.
Characteristic:
1. Uniform thickness and smooth appearance;
2. Contains no asbestos and anticorrosion;
3. Low heat storage;
4. Low thermal conductivity;
5. Good flexibility and toughness and resistance to avulsion;
6. Excellent chemical stability;
7. High temperature filtration;
8. Excellent electric insulation and sound insulation;
Teachnical Data:
Item | ZYC-STD | ZYC-HP | ZYC-HA | ZYC-HZ | |
Classification Temperature (farenhite) | 1260 | 1260 | 1360 | 1430 | |
Permanent Linear Change(%) | 950x24h ≤-3.5 | 1100x24h ≤-3.5 | 1200x24h ≤-3.5 | 1300x24h ≤-3.5 | |
Thermal Conductivity (W/m.k) | 400 | 0.07 | 0.07 | 0.069 | 0.068 |
600 | 0.09 | 0.09 | 0.088 | 0.087 | |
800 | 0.12 | 0.12 | 0.11 | 0.1 | |
Organic Content(%) | 10 | 8 | 8 | 8 | |
Tensile Strength (≥Mpa) | 0.5 | 0.65 | 0.7 | 0.75 | |
Density (kg/m3) | 190-220 | ||||
Moistures(%) | ≤1 | ||||
Size (mm) | 40000x1220x1;40000x610x1; 30000x1220x2; 30000x610x2;20000x1220x3;20000x610x3;15000x610x4; 10000x610x5 | ||||
Thickness (mm) | 0.5-6 | ||||
Application:
◎ Industrial insulation, sealing, anti-corrosion materials.
◎ Insulation for electric apparatus.
◎ Insulation materials for apparatus and electrothermal components.
◎ Automotive industry insulation and sound absorption function.
◎ Expansion joint filler material.
◎ Isolation for construction material, metallurgy and glass industries.
◎ Molten metal sealing gasket.
◎ Fireproof material.
Packaging & shipping:

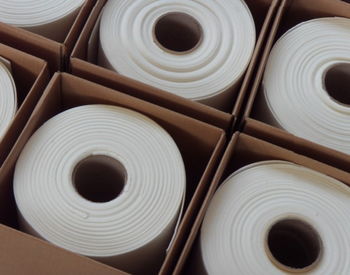

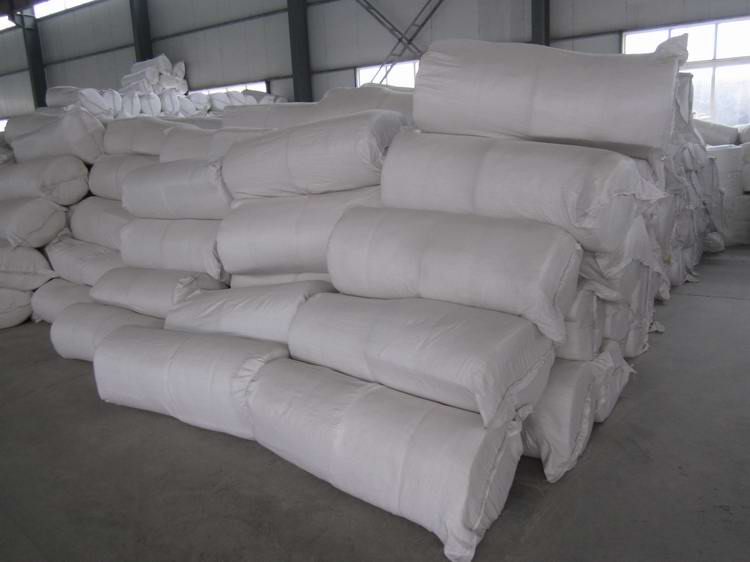

Packaging:
1.Plastic bag 2.Carton
Shipping:
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. What is the service life of your bricks?
A: The service life of different bricks is unlike.It also depends on your using condition and method.
Q3. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
