High adhesive strength High temperature binder
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:

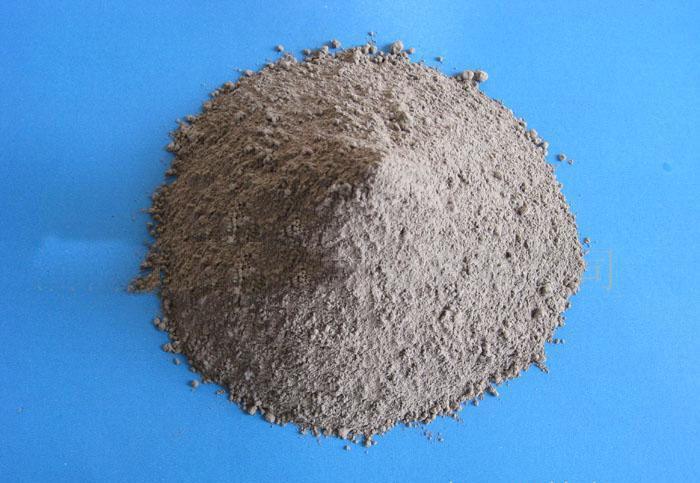

The refractory mortar is an amorphous refractory material used for laying refractory bricks and coat lining high temperature kiln. Its quality directly determines the construction quality and service life of the kiln. Therefore, the choice of refractory mortar is crucial.
Characteristics：
1. High adhesive strength.
2. Thermal expansion coefficient is low.
3. Heating linear change small.
4. Granularity standard.
5. Construction performance is strong.
Teachnical Data:
Items/Type | Fire clay refractory mortar | High aluminum refractory mortar | ||||||
Class | CM-38 | CM-42 | CM-45 | HM-55 | HM-65 | HM-75 | HM-85 | |
Chemical composition,% | AL2O3, ≥ | 38 | 42 | 45 | 55 | 65 | 75 | 85 |
Refractoriness °C ≥ | 1710 | 1730 | 1750 | 1770 | 1790 | 1800 | 1850 | |
Bonding time ,min | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
Modulus of rupture, MPa ≥ | 110°C×24h | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
°C | 1200×3h | 1300×3h | 1300×3h 4 | 1400×3h | 1400×3h | 1500×3h 5 | 1500×3h 5 | |
Particle size,% | -1.0mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
+0.5mm ,≤ | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
-0.074mm,≥ | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Using temperature, | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1650 | |
Application:
Refractory mortar is mainly used for laying refractory bricks, Insulation brick and repair of furnace lining.
More Details:
Commodity | Refractory mortar |
Quality Standard | KS,JIS,ASTM,ASME,AMS,DIN,etc |
Customization | The size, Chemical analysis,Technical specification can be customized |
Packaging | 25kg bag﹠pallet or big bag |
Samples | The stock samples are free, Only need to to pay for the freight |
Delivery Time | 7-20days after confirming the order |
Terms of payment | T/T,L/C, Western Union, MoneyGram , Paypal,etc |
Terms of shipment | FOB,CIF,CNF,etc |
Port of Loading | Qingdao port, Tianjin port |
Certificate File | CO, CE,COA, Test Report,etc |
MOQ | 1 pallet |
Product Range | Fire clay brick, High alumina firebrick, Insulating brick, Corundum brick, Refractory castable, Insulating castable, Ceramic fiber products, Refractory mortar,etc. |
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
Professional quality testing.
① Chemical analysis.②Physical properties.

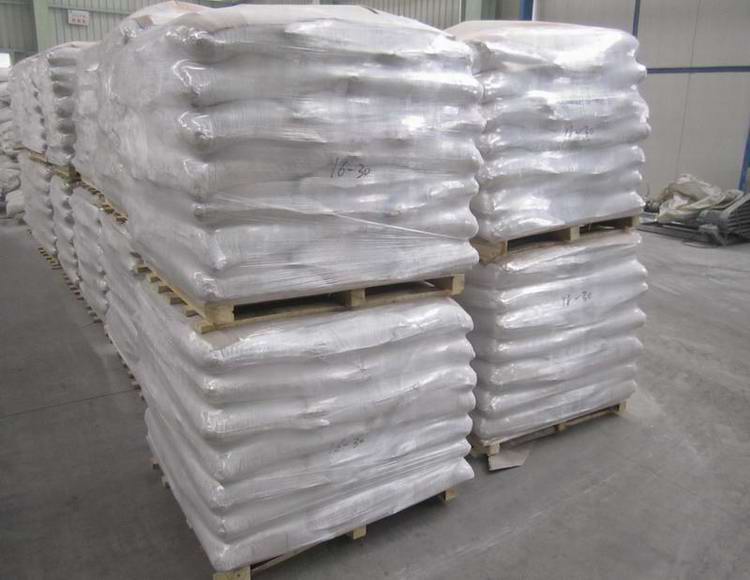

Packaging & shipping:
Packaging:
1. 25kg plastic woven bag or kraft paper bag in 1000-1500kg big bag.
2. 25kg plastic woven bag or kraft paper bag on pallet and covering by plastic films.
Shipping:
20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
Company Description:
ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Refractory bricks, Refractory mortar, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
