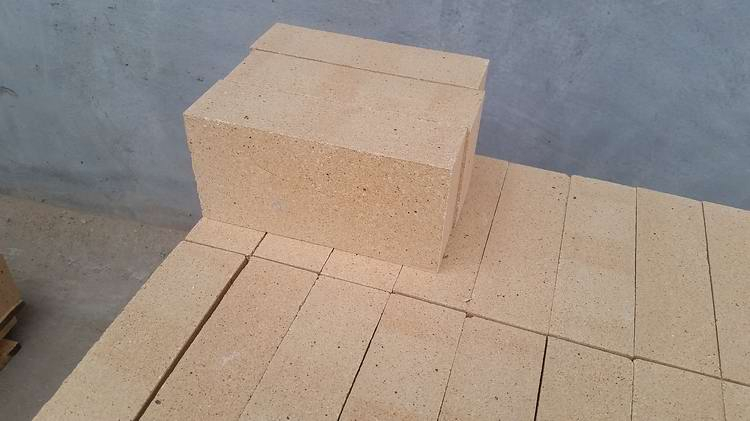

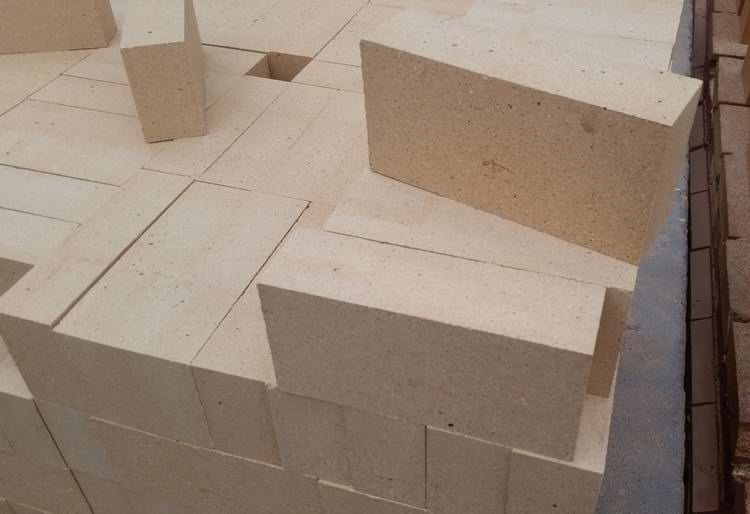

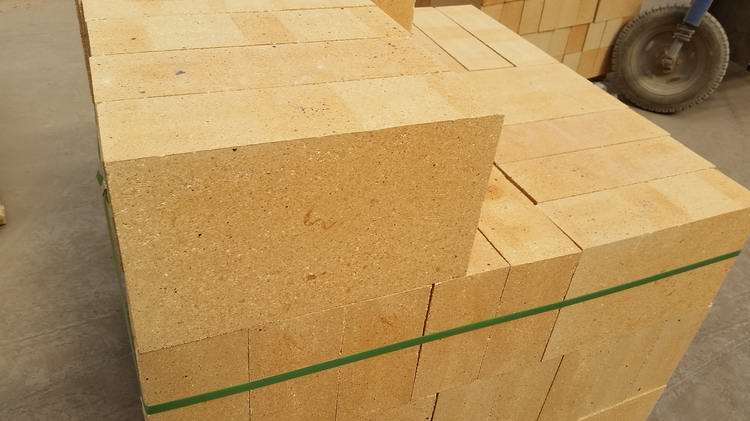

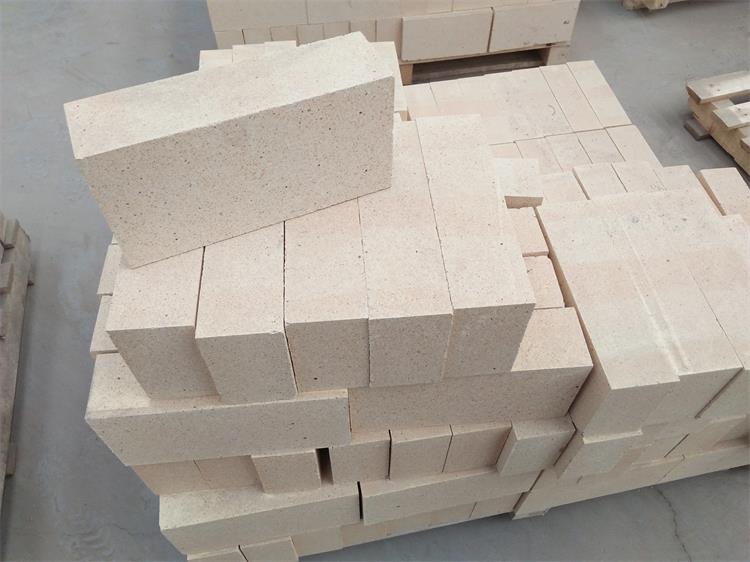

For coke oven Clay fire brick
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Features and advantages:
1. Low inpurities.
2. Tight dimensional tolerance.
3. Low heat storage.
4. Strong compressive strength.
5. High-temperature endurable.
6. High mechanical strength.
Physical and chemical index:
Items/Grade | Fire clay brick | |||
JN-40 | JN-42 | |||
Standard | Average | Standard | Average | |
Refractoriness ℃ | ≥1730 | ≥1740 | ≥1730 | 1750 |
Apparent Porosity % | ≤24 | ≤22.3 | ≤24 | 21.8 |
Bulk density g/cm3 | 2.2 | |||
Cold crushing strength MPa | ≥24.5 | 42.9 | ≥24.5 | 44.3 |
Refractoriness under load , 0.2MPa KD℃ | ≥1350 | 1390 | ≥1350 | 1410 |
Permanent linear change on reheating % | 1350*2≤0.5 | 0.11 | 1350*2≤0.5 | 0.12 |
Resistance themal shock times (1100℃,water-cooling) | ≥10 | 15 | ||
AL2O3 % | ≥40 | 42.9 | ≥42 | 43.5 |
Part of Use | Main of Coke oven | Coal entrance ect parts | ||
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Professional quality testing.
① Chemical analysis.②Physical properties.
2. Appearance check.
①Dimension Tolerance. ②Distortion. ③Crack. ④Edge angle defect.⑤Melted hole.⑥Color .
Packaging & shipping:

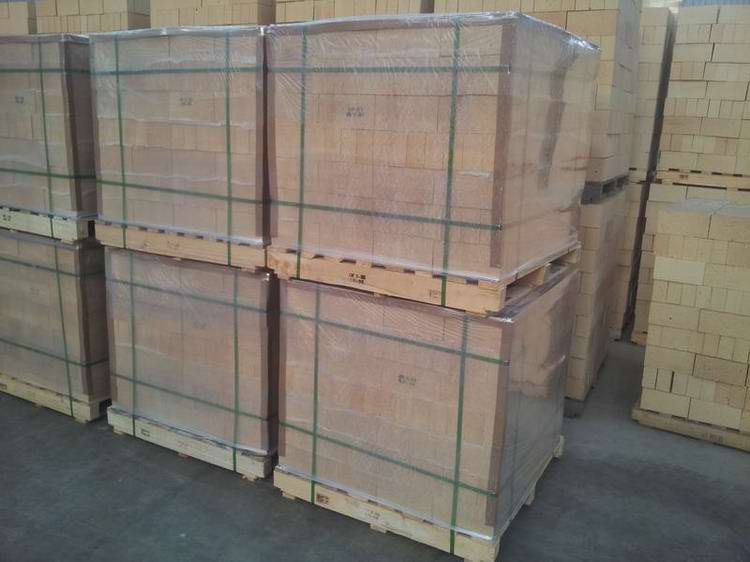

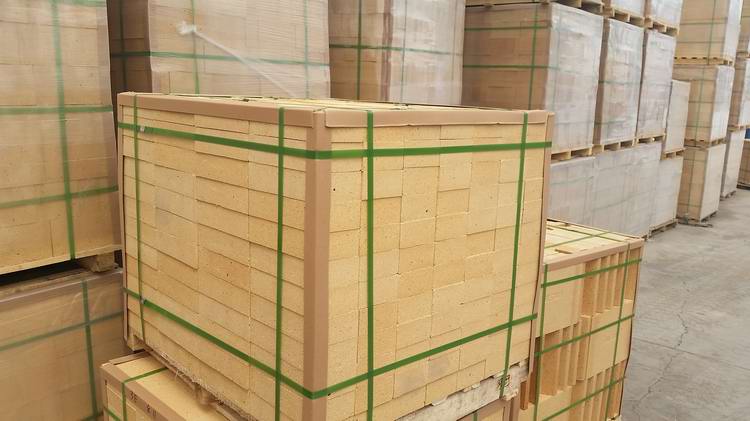

Packaging:
1. Fire bricks will be packed by pallet with PET strap fixed , covering by plastic films.
2. The size of standard export pallet is 1000*1000mm.
Load weight of each pallet:1.5-2.0 Tons.

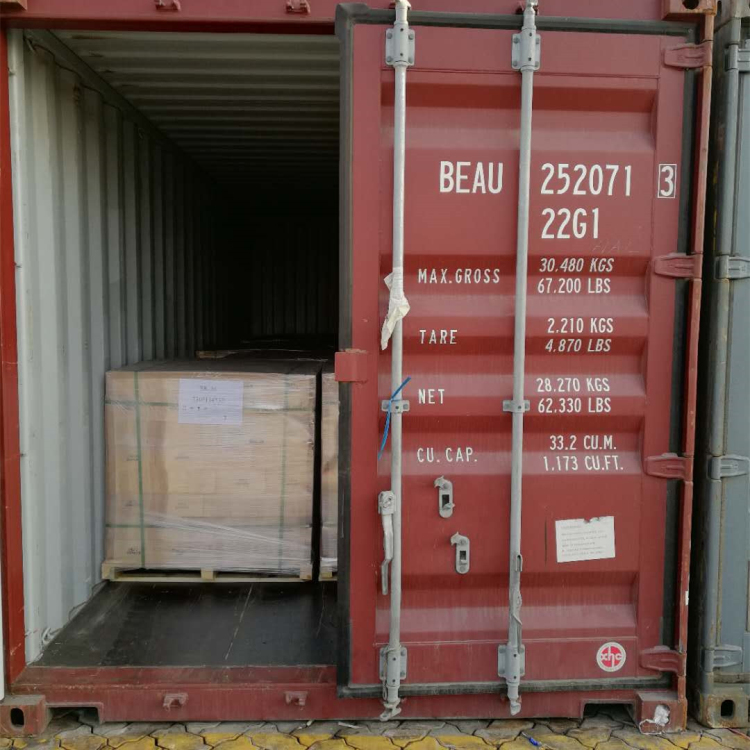

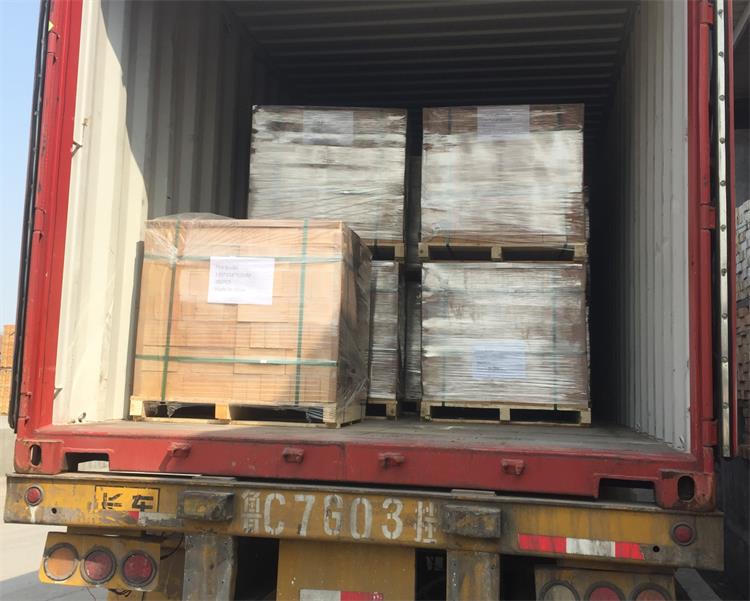

Shipping:
20 Foot Container can be loaded 24Tons,
40 Foot Container can be loaded 28Tons.
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. What is the service life of your bricks?
A: The service life of different bricks is unlike.It also depends on your using condition and method.
Q3. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
Company Description: ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
