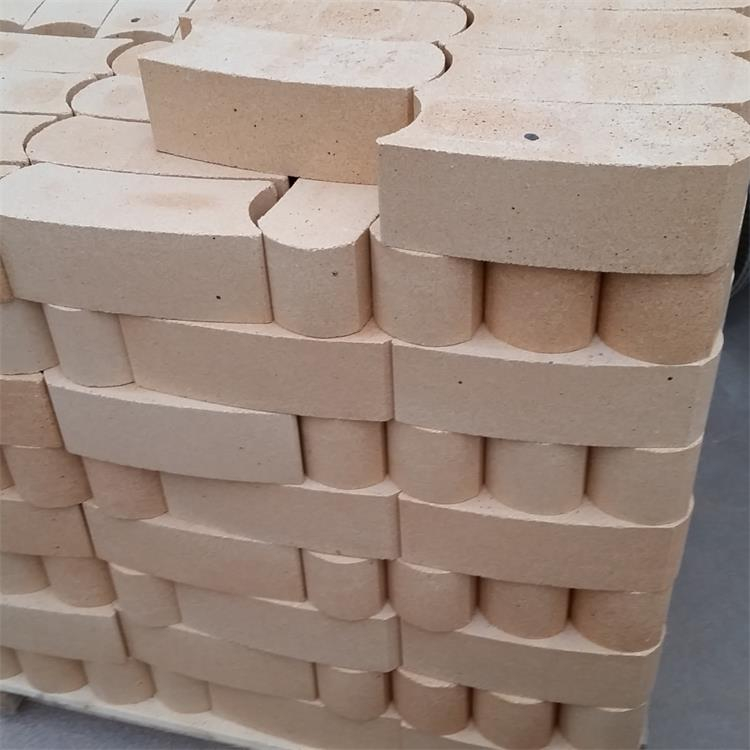

Fire Brick
| Quantity: | |
|---|---|
Characteristics:
1. High precision of dimensions.
2. Excellent spalling resistance and wear resistance.
3. Excellent corrosion resistance.
4. Excellent thermal shock resistance.
5. Low iron content and impurities.
6. High-temperature creep rate is low.
7. Excellent volume stability at high temperature.
Teachnical Data Sheet:
Item/Grade NO. | Fire clay brick | High alumina brick | |||||
SK-32 | SK-34 | SK-35 | SK-36 | SK-37 | SK-38 | ||
Chemical Analysis | |||||||
AL2O3 | % | 32-36 | 38-42 | 45-50 | 50-55 | 60-65 | 70-75 |
Fe2O3 ≤ | % | 2.5 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Physical properties | |||||||
Refractoriness | SK | 32 | 34 | 35 | 36 | 37 | 38 |
°C | 1710 | 1750 | 1770 | 1790 | 1825 | 1850 | |
Refractoriness Under Load, 2kg/cm2, T2 ≥ | °C | 1350 | 1400 | 1450 | 1500 | 1530 | 1560 |
Apparent Porosity ≤ | % | 24 | 22 | 22 | 22 | 22 | 22 |
Bulk Density (g/cm³) | g/cm³ | 2.0～2.1 | 2.1～2.2 | 2.2～2.3 | 2.2～2.4 | 2.3～2.6 | 2.4～2.6 |
Cold Crushing Strength ≥ | kg/cm2 | 250 | 350 | 400 | 450 | 500 | 550 |
Thermal Expansion at 1000°C | % | 0.4～0.6 | 0.4～0.6 | 0.5～0.7 | 0.5～0.7 | 0.5～0.7 | 0.5～0.7 |
Permanent Linear Change at 1500°C×2Hrs | % | 0～-0.4 1350°C×2Hrs | 0～-0.3 1400°C×2Hrs | 0～-0.2 | 0～-0.2 | 0～-0.2 | 0～-0.2 |
More Details:
Commodity | Fire brick, Refractory brick | ||
Quality Standard | KS,JIS,ASTM,ASME,AMS,DIN,etc | ||
General Size | Straight type | Arch type | Wedge type |
L×W×H (mm) 230×114×65 230×114×75 230×114×32 220×110×60 230×230×65 300×300×65 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 230×114×65/59 230×114×65/50 230×114×75/65 220×110×60/50 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 230×114×65/35 230×114×75/65 230×114×75/55 220×110×60/40 | |
Customization | The size, Chemical analysis,Technical specification can be customized | ||
Packaging | Placed on a pallet and protected by plastic film | ||
Samples | The stock samples are free, Only need to to pay for the freight | ||
Delivery Time | 15-40days after confirming the order | ||
Terms of payment | T/T,L/C, Western Union, MoneyGram , Paypal,etc | ||
Terms of shipment | FOB,CIF,CNF,etc | ||
Port of Loading | Qingdao port, Tianjin port | ||
Certificate File | CO, CE,COA, Test Report,etc | ||
MOQ | 1 pallet | ||
Product Range | Fire clay brick, High alumina firebrick, Insulating brick, Corundum brick, Refractory castable, Insulating castable, Ceramic fiber products, Refractory mortar,etc. | ||
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Professional quality testing.
① Chemical analysis.②Physical properties.
2. Appearance check.
①Dimension Tolerance. ②Distortion. ③Crack. ④Edge angle defect.⑤Melted hole.⑥Color .
Company Description: ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
Characteristics:
1. High precision of dimensions.
2. Excellent spalling resistance and wear resistance.
3. Excellent corrosion resistance.
4. Excellent thermal shock resistance.
5. Low iron content and impurities.
6. High-temperature creep rate is low.
7. Excellent volume stability at high temperature.
Teachnical Data Sheet:
Item/Grade NO. | Fire clay brick | High alumina brick | |||||
SK-32 | SK-34 | SK-35 | SK-36 | SK-37 | SK-38 | ||
Chemical Analysis | |||||||
AL2O3 | % | 32-36 | 38-42 | 45-50 | 50-55 | 60-65 | 70-75 |
Fe2O3 ≤ | % | 2.5 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Physical properties | |||||||
Refractoriness | SK | 32 | 34 | 35 | 36 | 37 | 38 |
°C | 1710 | 1750 | 1770 | 1790 | 1825 | 1850 | |
Refractoriness Under Load, 2kg/cm2, T2 ≥ | °C | 1350 | 1400 | 1450 | 1500 | 1530 | 1560 |
Apparent Porosity ≤ | % | 24 | 22 | 22 | 22 | 22 | 22 |
Bulk Density (g/cm³) | g/cm³ | 2.0～2.1 | 2.1～2.2 | 2.2～2.3 | 2.2～2.4 | 2.3～2.6 | 2.4～2.6 |
Cold Crushing Strength ≥ | kg/cm2 | 250 | 350 | 400 | 450 | 500 | 550 |
Thermal Expansion at 1000°C | % | 0.4～0.6 | 0.4～0.6 | 0.5～0.7 | 0.5～0.7 | 0.5～0.7 | 0.5～0.7 |
Permanent Linear Change at 1500°C×2Hrs | % | 0～-0.4 1350°C×2Hrs | 0～-0.3 1400°C×2Hrs | 0～-0.2 | 0～-0.2 | 0～-0.2 | 0～-0.2 |
More Details:
Commodity | Fire brick, Refractory brick | ||
Quality Standard | KS,JIS,ASTM,ASME,AMS,DIN,etc | ||
General Size | Straight type | Arch type | Wedge type |
L×W×H (mm) 230×114×65 230×114×75 230×114×32 220×110×60 230×230×65 300×300×65 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 230×114×65/59 230×114×65/50 230×114×75/65 220×110×60/50 | L×W×H/h (mm) 230×114×65/55 230×114×65/45 230×114×65/35 230×114×75/65 230×114×75/55 220×110×60/40 | |
Customization | The size, Chemical analysis,Technical specification can be customized | ||
Packaging | Placed on a pallet and protected by plastic film | ||
Samples | The stock samples are free, Only need to to pay for the freight | ||
Delivery Time | 15-40days after confirming the order | ||
Terms of payment | T/T,L/C, Western Union, MoneyGram , Paypal,etc | ||
Terms of shipment | FOB,CIF,CNF,etc | ||
Port of Loading | Qingdao port, Tianjin port | ||
Certificate File | CO, CE,COA, Test Report,etc | ||
MOQ | 1 pallet | ||
Product Range | Fire clay brick, High alumina firebrick, Insulating brick, Corundum brick, Refractory castable, Insulating castable, Ceramic fiber products, Refractory mortar,etc. | ||
Quality Control:
We have perfect quality control system, Quality inspectors will conduct sampling inspection of all products, Substandard products will be prohibited leaving factory.
Our quality inspection items:
1. Professional quality testing.
① Chemical analysis.②Physical properties.
2. Appearance check.
①Dimension Tolerance. ②Distortion. ③Crack. ④Edge angle defect.⑤Melted hole.⑥Color .
Company Description: ZIBO ZHUOYUE REFRACTORY CO.,LTD is a specialized manufacturer and exporter of refractories in China. With more than 30 years production experience.
1. Mainly products: Refractory bricks, Refractory castables, Insulating bricks, Insulating castables, Calcined kaolin, Chamotte, Mullite, Ceramic fiber products, etc.
2. Production capacity : Equipped with 2 tunnel kilns , 4 shaft kilns,25 presses machine, 2 castables automatic batching production line,4 Particle and powder production lines,Production capacity of over 100,000 tons per year.
3. Main market : Products are exported to more than 30 countries (Such as South Korea, Japan, German, France, Italy, Indonesia, US, Australia, Malaysia, Philippines, Israel, Jordan, Turkey, Syria, Honduras, South Africa, China Taiwan and so on).
Our Services:
In order to make you more assured of our products, we can provide you with more services:
1. We can provide you with photos of every link of the product.
2. We can provide you with the authoritative test report of the product.
3. We will provide you with a comprehensive after-sales service, such as the quality of the product, construction programs,usage method,etc.
4. If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence.
