Filling insulation and joint sealing for industrial furnace Bulk ceramic fiber
| Quantity: | |
|---|---|
Product Description:
Product Brief Introduction:
Ceramic fiber, also known as aluminium silicate fiber, are a new type of lightweight refractory material. The material has the advantages of light bulk density, high temperature resistance, good thermal stability, low heat conductivity, small heat capacity, small thermal expansion and good thermal insulation. After special processing, it can be made into Ceramic fiber module, ceramic fiber board, ceramic fiber felt, ceramic fiber rope ,ceramic fiber blanket, ceramic fibre paper and other products.

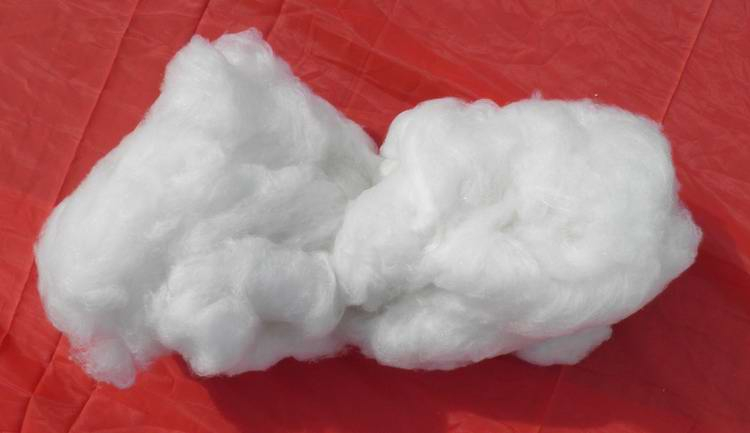

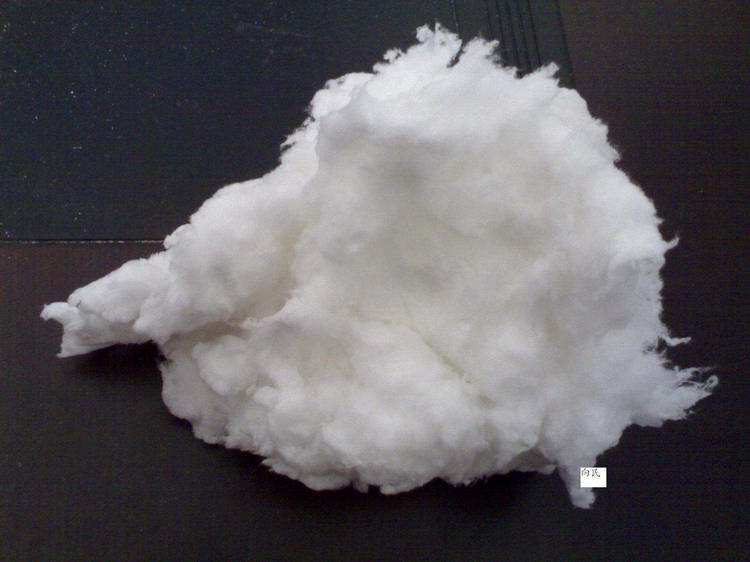

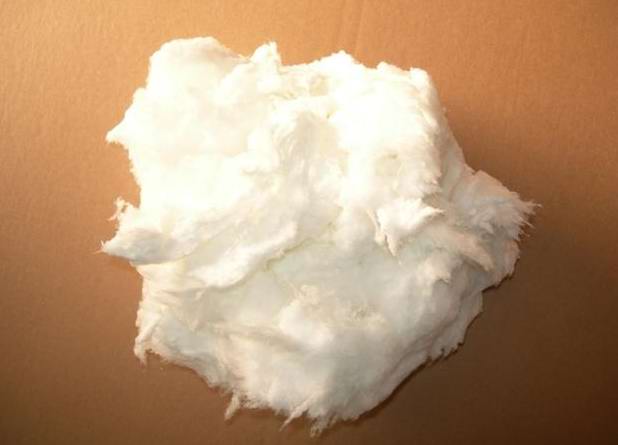

Bulk ceramic fiber
Characteristic:
1. Low thermal conductivity , Low thermal capacity.
2. Low slag ball content Good springiness.
3. High temperature stability , Resistance to thermal shock.
4. Excellent tensile strength.
5. Excellent chemical stability.
6. Excellent sound absorption, Fire protection and chemical corrosion resistance.
Teachnical Data:
Item | ZYC-COM | ZYC-STD | ZYC-HP | ZYC-HA | ZYC-HZ | |
Specification Tem(ºC) | 1100 | 1260 | 1260 | 1360 | 1430 | |
Working Tem(ºC) | <1000 | 1050 | 1100 | 1200 | 1350 | |
Color | white | Pure white | Pure white | Pure white | Pure white | |
Fiber dia(um) | Blowing | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
Swinging | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.0 | 3-4.0 | |
Chemical | AL2O3 | 44 | 46 | 47—49 | 52-55 | 39-40 |
AL2O3+SiO2 | 96 | 97 | 99 | 99 | - | |
AL2O3+ SiO2+ ZrO2 | - | - | - | - | 99 | |
ZrO2 | - | - | - | - | 15-17 | |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
All the fibers are packed in sack with the packing weight: 20kg Or made according to customers s requirement | ||||||
Applications
◎Filling insulation and joint sealing for industrial furnace.
◎Back-up lining for industrial furnaces.
◎Fireproof materials for construction.
◎High temperature materials for filtration.
◎Raw materials for further producing, such as modules.
◎Raw material of fiber spraying, casting materials and coating materials.
Packaging & shipping:
Packaging:
1.Plastic bag 2.Carton
Shipping:
FAQ:
Q1. How to get the exact price?
A: Your detail information about your product is highly appreciated, such as: Specification, Teachnical data ,Size, Drawing, Quantity, Application and Port of discharge, etc. we'll quote you our best price as soon.
Q2. How to slove the quality problems?
A: If the goods have quality problems, we will negotiate with you and pay compensation according to the evidence if necessary.
